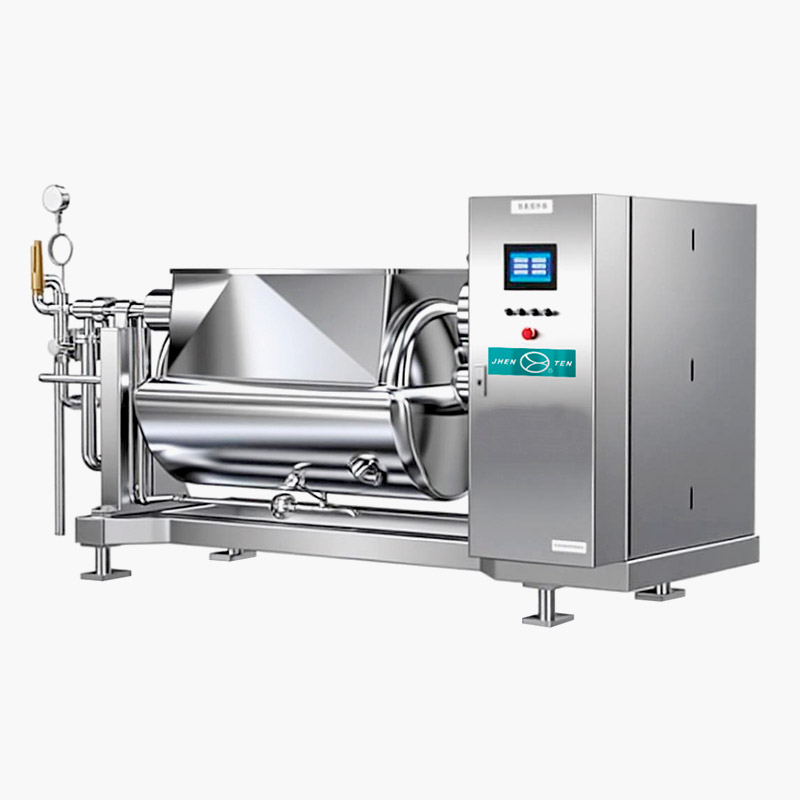

Steam Jacketed Vessel

·Steam heating for easy thermal control and simplified cleaning/maintenance.

·High-efficiency steam pressure (3.0 kg/cm2) for high-temperature processing.

·Full jacket with deflector plate design.

Temperature Control Module

·Feedback control system + steam recovery pipeline reduces energy consumption by 30%.

Mixing System

·PTFE/PEEK available optional blade material.

·Dual-motion (revolution + rotation).

·Variable frequency speed regulation (5-60 rpm adjustable).

Tilt Discharge

·Hydraulically-driven 70°tilting for residue-free discharge.

·Different grades of hydraulic systems can be optionally equipped.

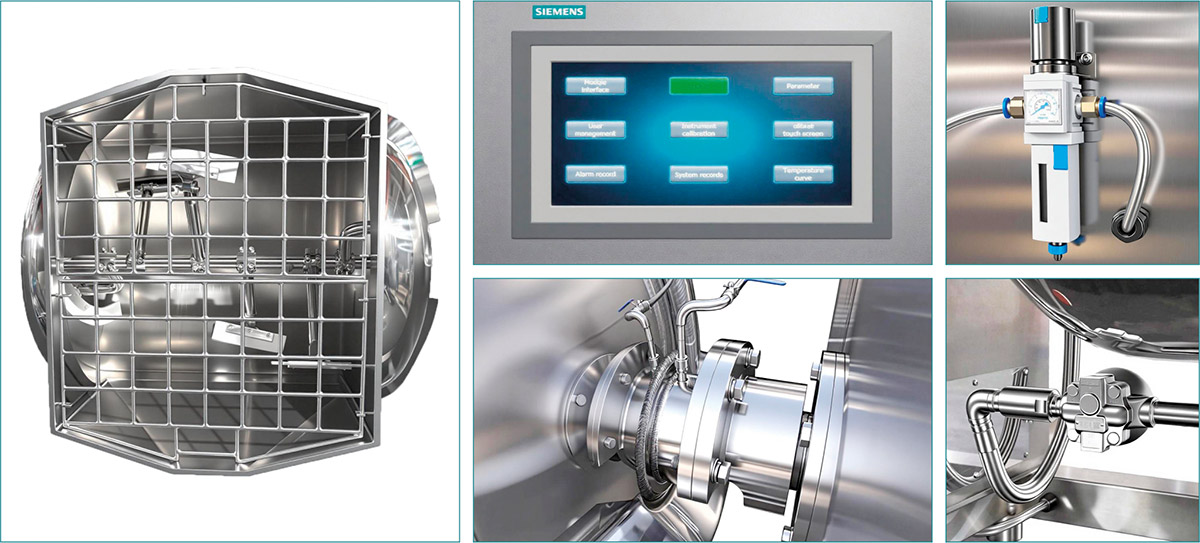

Intelligent Control

·PLC touchscreen interface.

·Pre-set process curves.

·Real-time monitoring (temperature/speed/time parameters).

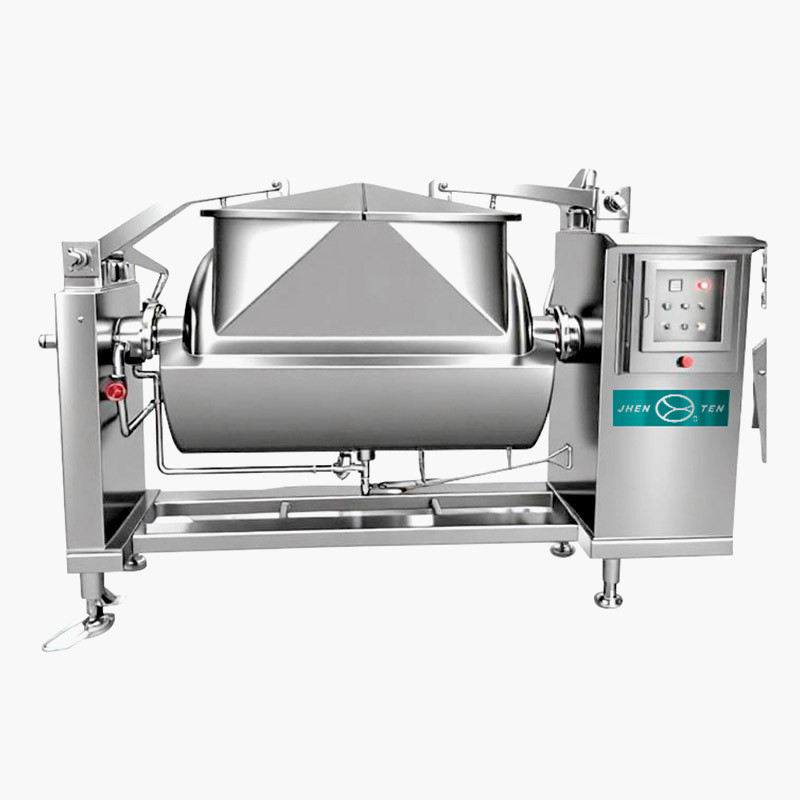

Tilting Discharge System

Optional weighing module

Frame Structure

Core Advantages

Ultra-Gentle Processing

Unique semi-cylindrical vessel + flexible PTFE paddles simulate natural material flow, achieving >99% particle integrity.

Precision Temperature & Efficiency

Dual steam injection/recovery system boosts thermal efficiency by 40%, enabling continuous 120°C high-temperature operations.

Complete Hygiene & Safety

Full food-grade construction (SUS 304/316L + PTFE), No sanitary dead corners, supports CIP (Clean-in-Place), and meets FDA certification requirements.

Complete Hygiene & Safety

Frequency conversion speed control can be used to match material viscosity, and can be equipped with process memory and remote IoT functions.

Robust Long-Term Durability

Reinforced stainless steel body with ≥10-year design lifespan.

Configuration selection

·Vacuum Series: Prevents oxidation during foaming (ideal for jams/creams).

·Cooling Type: Rapid cooling through jacket with cold water circulation (suits jellies/gel-based products).

·EX-Proof Configuration: Designed for flammable materials (optimized for alcohol-based sauces).

·Specialized Paddles: Anchor type / Impeller type (for ultra-high-viscosity materials).
